How to use AWS E3 Bucket on Java 1.x Spring Boot

AWSSpring BootJava AWS E3 Spring Boot Files Java 1.x Bucket Cloud Upload Download

This article is based on my personal project needs and the knowledge I’ve gathered through self-study. If you find any errors or inaccuracies, please feel free to point them out.

AWS Setups

In order to embed code in Spring Boot to access the bucket, there are 4 things you need to write in properties files.

1
2
3
4
5
6
aws:
  s3:
    access-key-id: xxxxxxxxxxxx
    access-key-secret: xxxxxxxxxxxx
    region-name: us-east-1
    bucket-name: xxxxxx

So we need to create a bucket for sure. And the accessed key is combined with the IAM user (it’s better to use IAM user instead of the account ). So we also need to create IAM user.

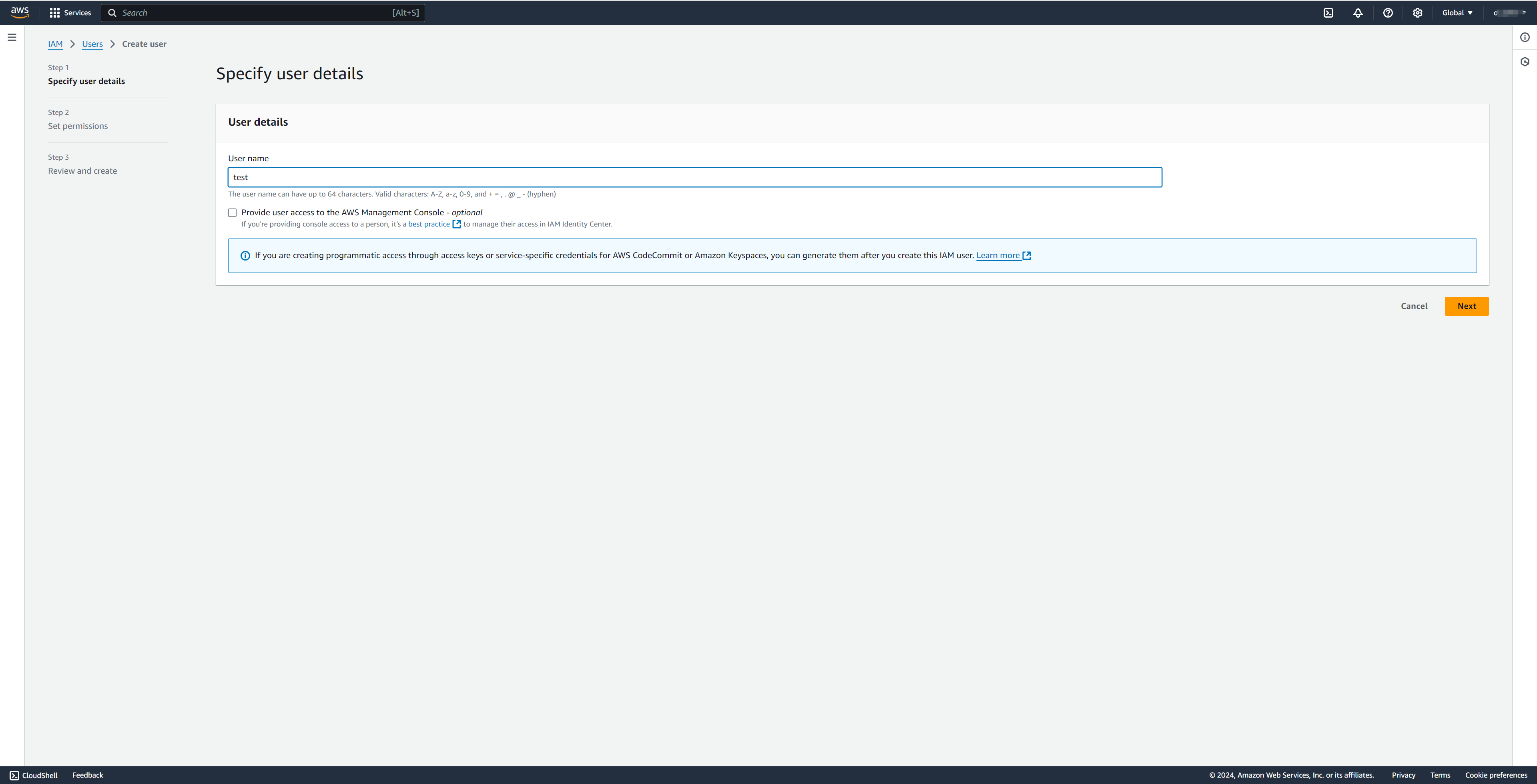

Create IAM user

Follow the steps to create the user.

I created a user group for later convenience.

image-20241007120456753

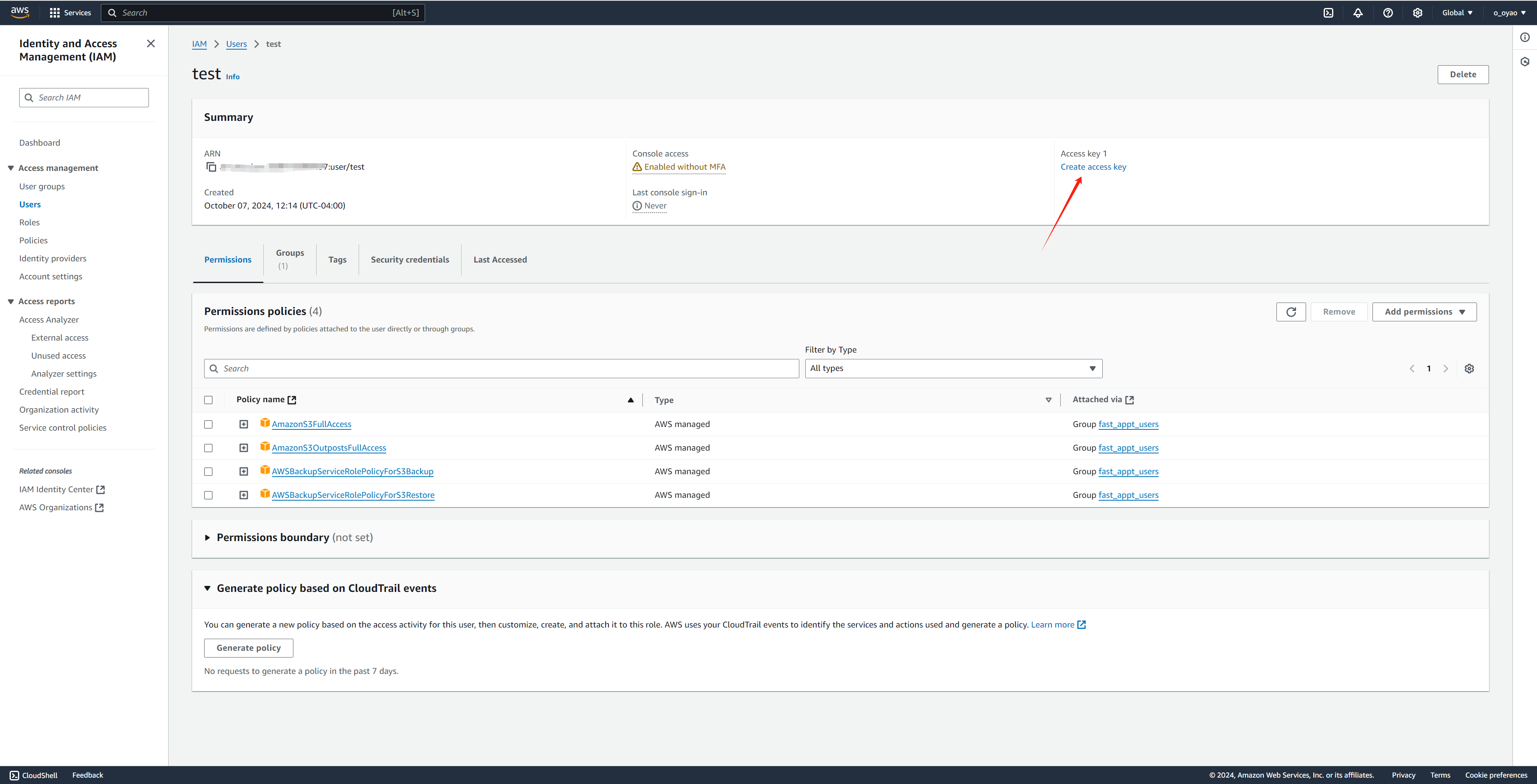

After that, we need to create an access key for the user.

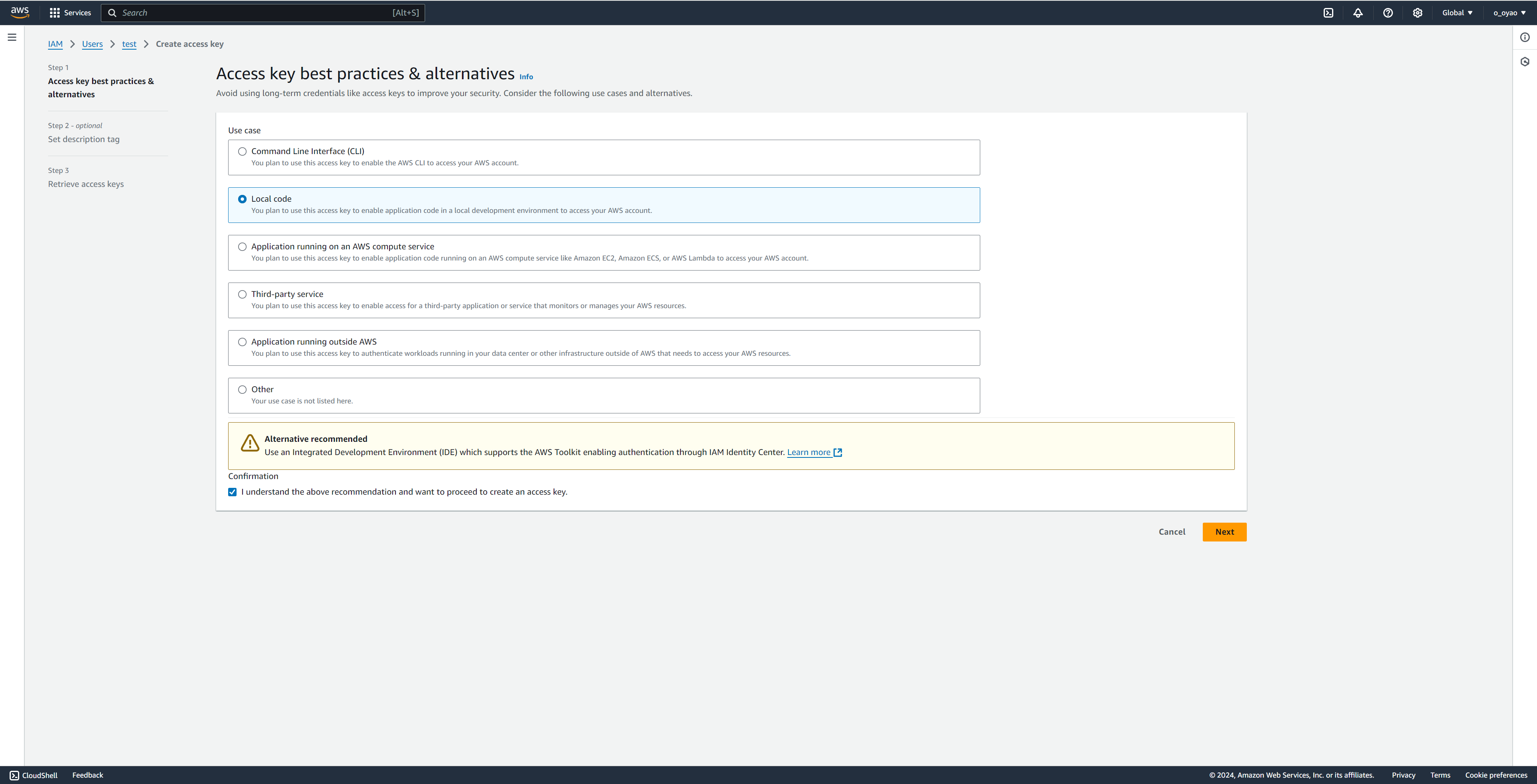

Choose the local code

This is where we find the Secret access key.

NOTE: Save it to somewhere. This is the only way to see the secret key

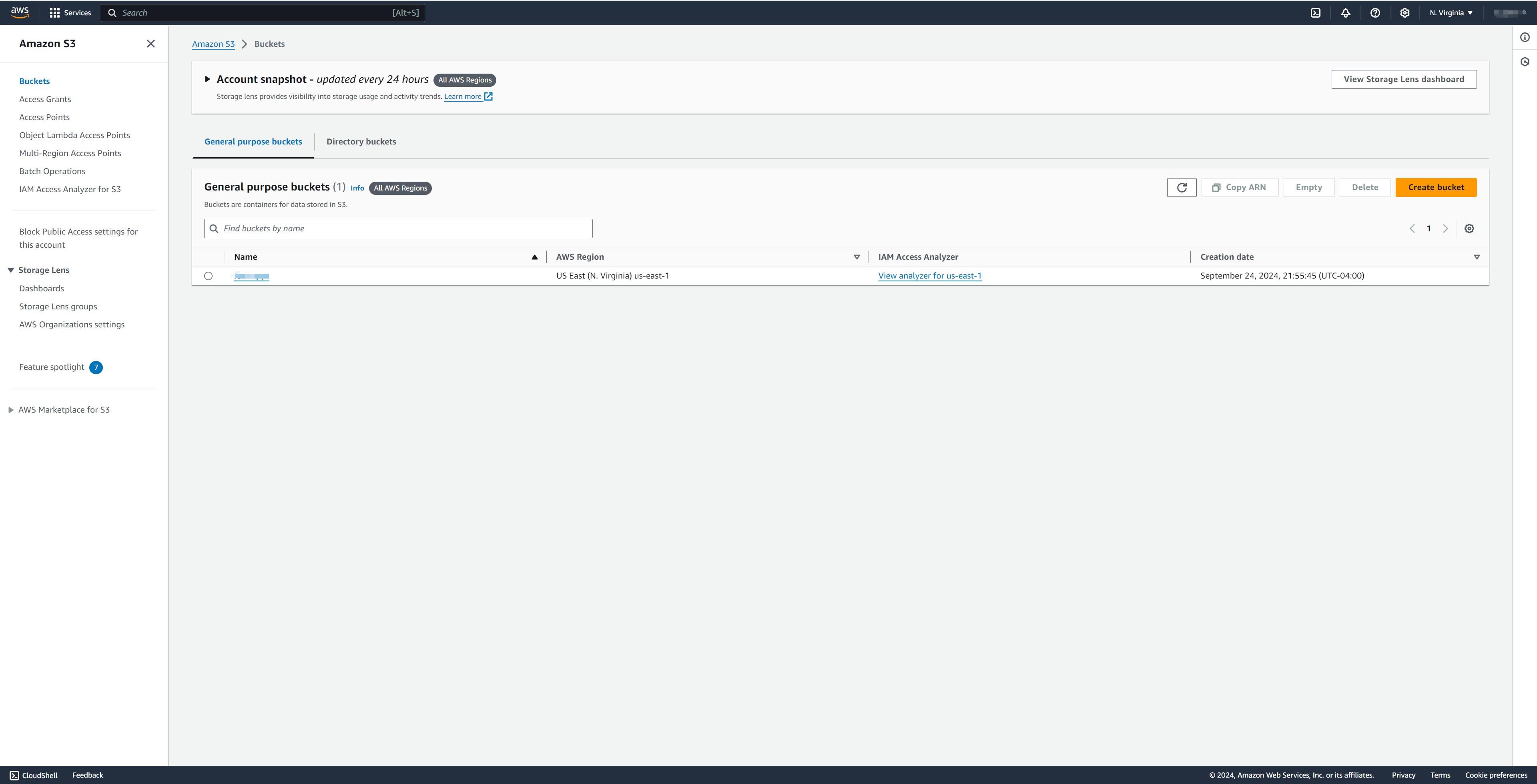

Create E3 Bucket

For my bucket, I need to store pictures, and it is allowed to read by anyone, so I need to set it’s reading permission to public:

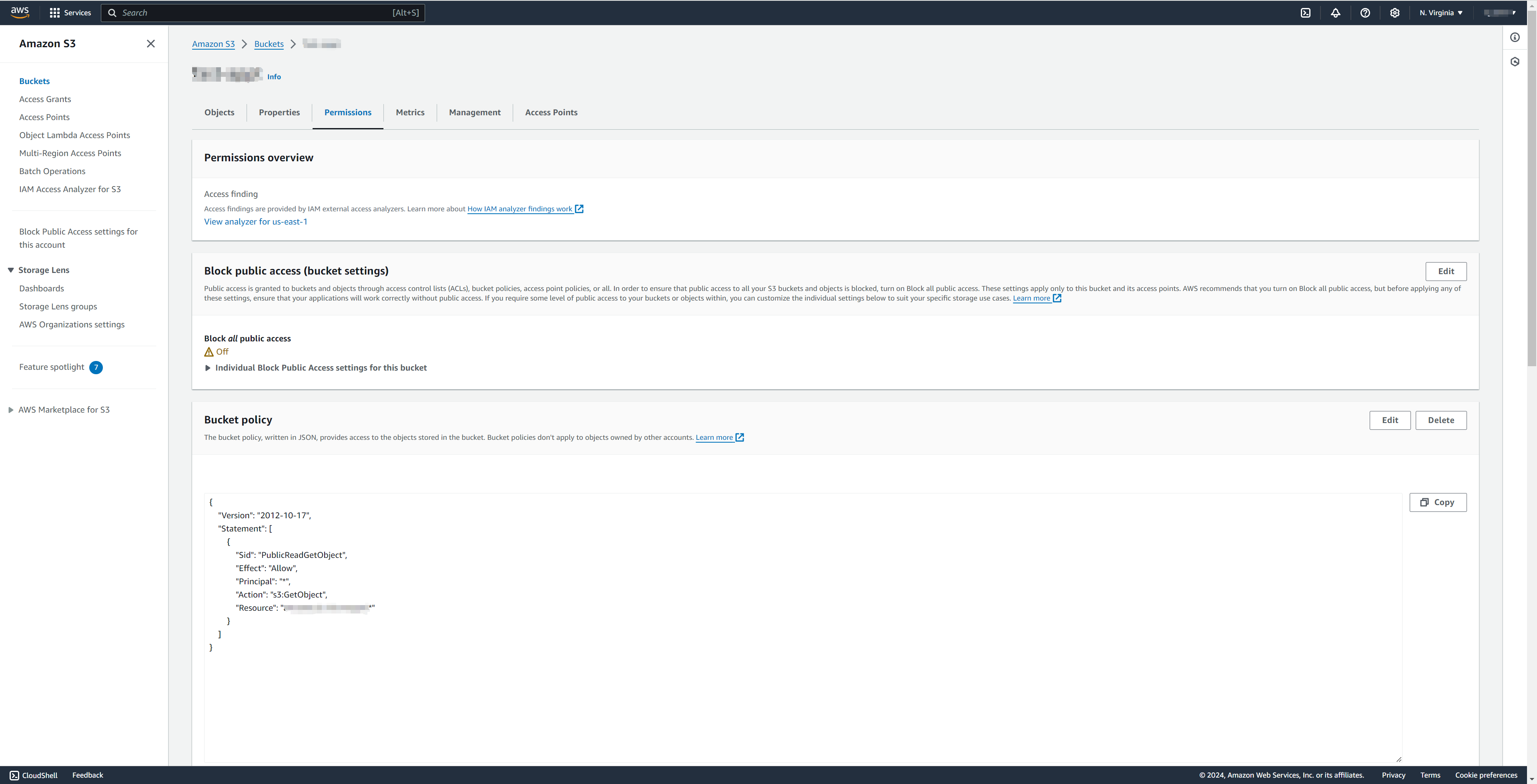

At the Bucket Policy, we write the permissions.

1
2
3
4
5
6
7
8
9
10
11
12
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "PublicReadGetObject",
            "Effect": "Allow",
            "Principal": "*",
            "Action": "s3:GetObject",
            "Resource": "arn:aws:s3:::bucket-name/*"
        }
    ]
}
  • RESOURCE is the bucket or the access point. (TODO: Later change the Resource to arn:aws:s3::: bucket_name/dir/*). So I can use the bucket store more file than just pictures).
  • ACTION is the action you want to give permission to. For my case, I just need to add permission to view the files, so that’s s3:GetObject, there is also ListBucket and PutObject and so on. Action List
  • PRINCIPAL is the user you want to give permission, since it’s anyone, its *, but if you want to specify user, you will need to set "Principal":{"AWS":["arn:aws:iam::AccountID1WithoutHyphens:root","arn:aws:iam::AccountID2WithoutHyphens:root"]}. More Principal Examples
  • EFFECT can be either Allow or Deny.
  • SID is jut the id name you made up.

For more information, see this website: Policies and Permissions on AWS S3

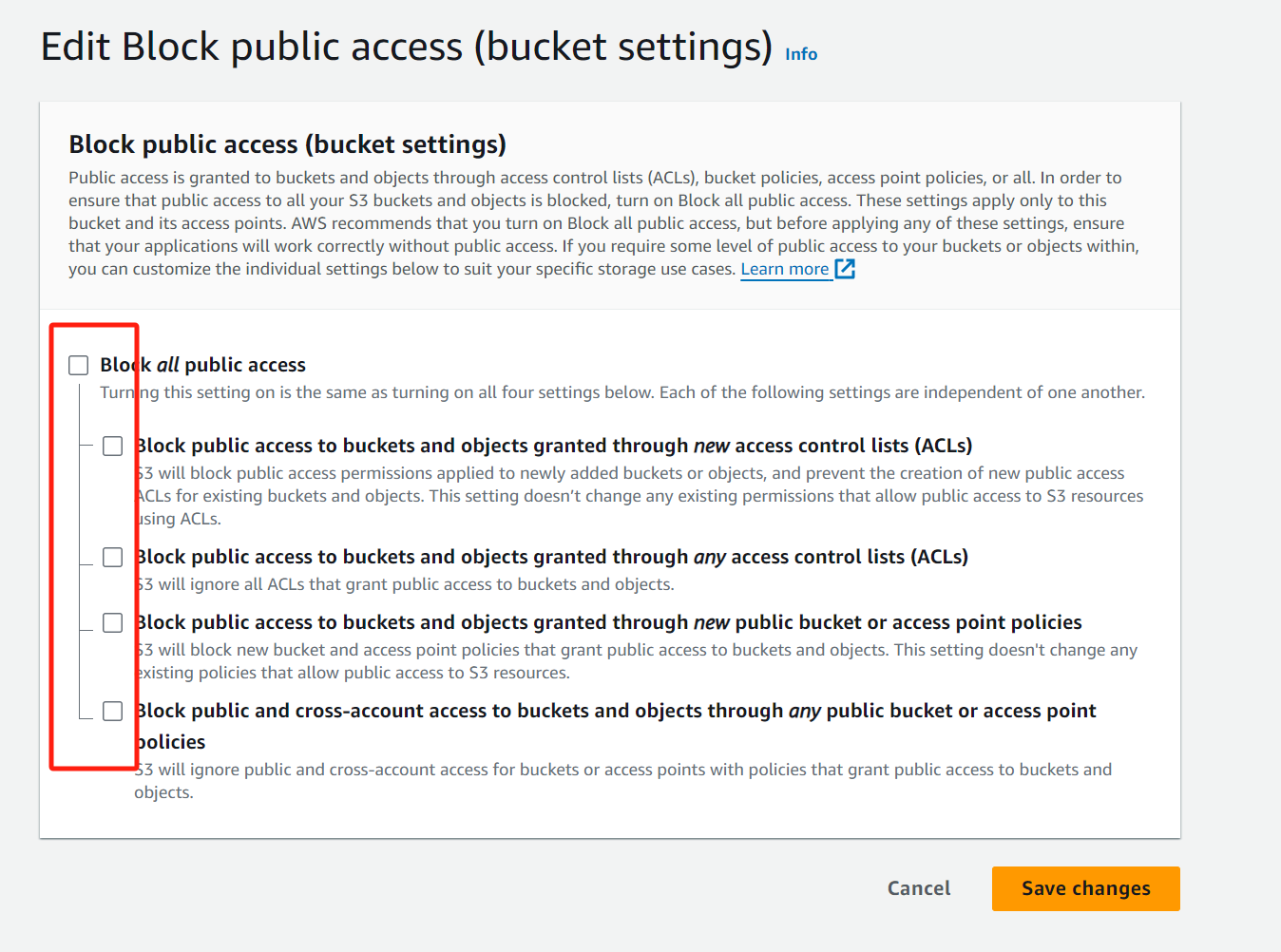

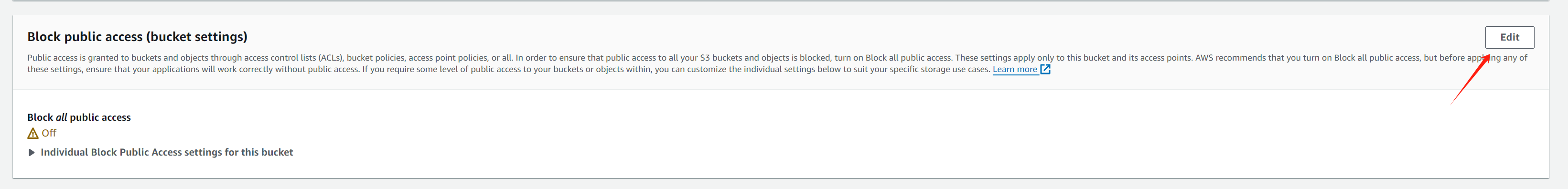

For public access, I also need to edit the settings of Block public access:

Then uncheck all the checkbox.

Spring Boot Code

dependencies

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<dependency>
    <groupId>com.amazonaws</groupId>
    <artifactId>aws-java-sdk-s3</artifactId>
    <version>1.11.336</version>
</dependency>
<dependency>
    <groupId>com.amazonaws</groupId>
    <artifactId>aws-java-sdk-core</artifactId>
    <version>1.11.336</version>
</dependency>
<dependency>
    <groupId>com.amazonaws</groupId>
    <artifactId>aws-java-sdk-kms</artifactId>
    <version>1.11.336</version>
</dependency>

Add Configurations

write the following in application.yml files

1
2
3
4
5
6
aws:
  s3:
    access-key-id: xxxxxxxxxxxx
    access-key-secret: xxxxxxxxxxxx
    region-name: us-east-1
    bucket-name: xxxxxx

And we nee to write a class to load the properties from the yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
package io.yao.appt.common.config;

import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

@Component
public class S3Config implements InitializingBean {

    @Value("${aws.s3.access-key-id}")
    private String accessKeyId;

    @Value("${aws.s3.access-key-secret}")
    private String accessKeySecret;

    @Value("${aws.s3.bucket-name}")
    private String bucketName;

    @Value("${aws.s3.region-name}")
    private String regionName;


    public static  String ACCESS_KEY_ID;
    public static String  ACCESS_KEY_SECRET;
    public static String BUCKET_NAME;
    public static String REGION_NAME;




    @Override
    public void afterPropertiesSet() throws Exception {
        ACCESS_KEY_ID = accessKeyId;
        ACCESS_KEY_SECRET = accessKeySecret;
        BUCKET_NAME = bucketName;
        REGION_NAME = regionName;
    }
}

Create a s3 utils class

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
package io.yao.appt.common.aws.s3;

import com.amazonaws.auth.AWSCredentials;
import com.amazonaws.auth.AWSStaticCredentialsProvider;
import com.amazonaws.auth.BasicAWSCredentials;
import com.amazonaws.services.s3.AmazonS3;
import com.amazonaws.services.s3.AmazonS3ClientBuilder;
import com.amazonaws.services.s3.model.ObjectMetadata;
import com.amazonaws.services.s3.model.PutObjectRequest;
import com.amazonaws.services.s3.model.PutObjectResult;

import java.io.IOException;
import java.io.InputStream;

public class S3Utils {
    private final AmazonS3 s3Client;

    public S3Utils(String accessKeyId, String accessKeySecret, String regionName) {
        AWSCredentials awsCredentials = new BasicAWSCredentials(accessKeyId, accessKeySecret);
        AmazonS3ClientBuilder builder = AmazonS3ClientBuilder.standard().withCredentials(new AWSStaticCredentialsProvider(awsCredentials));
        //设置S3的地区
        builder.setRegion(regionName);
        this.s3Client = builder.build();
    }
    public PutObjectResult upload(String fileName, String bucketName, InputStream inputStream) throws IOException {
        ObjectMetadata objectMetadata = new ObjectMetadata();
        objectMetadata.setContentType("plain/text");
        objectMetadata.setContentLength(Long.valueOf(inputStream.available()));
        PutObjectResult putObjectRequest = this.s3Client.putObject(new PutObjectRequest(bucketName, fileName, inputStream, objectMetadata));

        return putObjectRequest ;
    }

    public String generatePresignedUrl(String bucketName, String fileName) {
        // 生成URL
        return "https://" + bucketName + ".s3." + s3Client.getRegionName() + ".amazonaws.com/" + fileName;
    }

}

"https://" + bucketName + ".s3." + s3Client.getRegionName() + ".amazonaws.com/" + fileName is the format of URL to download or visit the files.

Actually use

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@Service
public class S3ServiceImpl implements S3Service {

    @Override
    public String upload(MultipartFile file) throws IOException {
        String accessKeyId = S3Config.ACCESS_KEY_ID;
        String accessKeySecret = S3Config.ACCESS_KEY_SECRET;
        String bucketName = S3Config.BUCKET_NAME;
        String regionName = S3Config.REGION_NAME;

        S3Utils s3Connection = new S3Utils(accessKeyId, accessKeySecret, regionName);
        System.out.println("connection successfully");
        String newFilename = FileUtils.generateFileName(file.getOriginalFilename());
        s3Connection.upload(newFilename, bucketName, file.getInputStream());

        return s3Connection.generatePresignedUrl(bucketName, newFilename);
    }
}
